Introduction

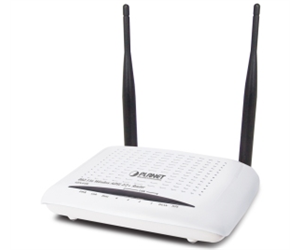

The PLANET ADN-4100 is a Wireless ADSL 2/2+ Router compliant with 802.11n and features 1T1R MIMO antenna technology. The ADN-4100 is the ideal solution for office and residential users to share a high-speed ADSL 2/2+ broadband Internet connection and four-10/100Mbps Fast Ethernet backbone. It can support transmission rates up to 24Mbps downstream and 3.5Mbps upstream. The ADN-4100 supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 2684 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516), and IPoA (RFC1483) to establish a connection with ISP.
With built-in IEEE 802.11b/g and 802.11n wireless network capabilities, the AND-4100 allows any computer and wireless-enabled network device connecting it without additional cabling. New 802.11n wireless capability gives you the highest speed of wireless experience ever. With a compatible wireless card installed in your PC, any file can be transferred and the highest speed can be up to 150Mbps. The radio coverage is also doubled than before, which offers the high speed wireless connection even in a wide space of your office or house.
To secure the wireless communication, the ADN-4100 supports the most up-to-date encryption, WEP, WPA-PSK and WPA2-PSK. In order to simplify the security settings, the ADN-4100 also supports WPS configuration with PBC/PIN type for users connect to a secured wireless network easily.
The ADN-4100 has user-friendly management interfaces so it can be managed by workstations running standard web browsers. It provides DHCP server, NAT, Virtual Server, DMZ, Access Control, IP Filter, PPTP/IPSec pass-through, DDNS, and UPnP capability. Furthermore, for VPN tunnel, it also supports PPTP/ IPSec tunneling The ADN-4100 serves as an Internet firewall to protect your network from being accessed by unauthorized users. It offers the natural firewall function. (Network Address Translation, NAT) All the incoming and outgoing IPs can be monitored and filtered. For the advanced application, it also can block internal users accessing the Internet services.
