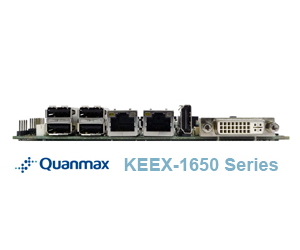

The KEEX-1650 Series is an ECX Form Factor embedded single board computer (SBC) that equips the Intel® Dual Core ATOM™ -N2800 / D2550 processors with the high integration of the Intel® NM10 Express chipset. Featured are DDR3 1066 SO-DIMM up to 4GB, 1x single channel LVDS, HDMI, DVI-I, 2x Gigabit Ethernet, 2x SATA, 2x mini PCIe Expansion slot, 6x USB 2.0, 6x COM ports, HD audio and Digital I/O.

Features:

• Intel® Atom N2800 / D2550 processors
• Intel® NM10 Express Chipset
• One DDR3 SO-DIMM Socket
• 1x LVDS, HDMI, DVI-I supported
• 2x Mini PCIe (Optional for mSATA support)
• 2x GbE
• 6x COM ports, 6x USB 2.0
• 2x SATA connectors supported
• Watchdog Timer, Hardware Monitor
