10/100/1000Base-T to 1000Base-X Gigabit Ethernet Management Media Converter Built-in IEEE802.3at PoE/PSE Feature with Extended Operating Temperature

Description

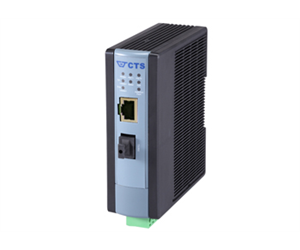

Connection Technology Systems (CTS) WPC-3112 series media converter are Gigabit Ethernet 10/100/1000Base-T to 1000Base-X media converter which is designed to fulfill the emerging deployment needs of fiber Ethernet network for operators and service providers with SNMP managed functionality.

When WPC-3112 is deployed at customer premises, the media converter can be fully managed by the network equipment in the Central Office site by popular SNMP based network management server (NMS). By leveraging the benefits of CTS unique SNMP based power down trap

feature, the WPC-3112 is able to send SNMP based trap message to NMS immediately when detects power failure on converter at customer site. It can significantly reduce truck rolls and save the operational cost (OPEX) for operators or service providers.

The flexible power options that WPC-3112 provides have either DC power or AC/DC power adaptor to fulfill most of practical deployment scenarios. The extended operating temperature of WPC-3112 media converter is from -20℃ to 60℃ which enables users to install the equipment under critical environment without reliable and stable concerns. It is especially designed for network operators, metro Ethernet providers, enterprise, SMB customer segment, who have the need of implementing fiber optical Ethernet networks over long distance for FTTx solutions with the demand of wide operating temperature, and are looking for an effortless and robust 1000Mbps media converter.

WPC-3112 series media converter is fully compliant with IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3at standards. Besides, it is equipped with some switching features including flow control and store and forward. Additionally, Link Alarm feature enables the administrator to monitor the fiber link status in visually and intuitively mechanism.

Features

• IEEE 802.3at PoE/PSE
  Support IEEE 802.3at PoE feature to feed power to remotely
  device and facilitate the deployment in the power unreachable
  application
• Link Alarm
  Supports link alarm function to help network administrator
  rapidly managing and recovering network fault
• Power redundancy over DC input by DC jack and terminal block
  Support power redundancy over DC input to keep the healthy
  network connection without power outage risk for general
  industrial application
• 9K Bytes Jumbo Frame Size
  Support jumbo frame size 9K bytes to ease the network traffic loading and facilitate IPTV service
• Operating temperature -20℃ ~ 60℃
  Support extended operating temperature to guarantee the
  reliability and stability under the critical environmental condition
  with affordable cost
• Target Applications
  SNMP managed Gigabit Ethernet media converter for point-to-point fiber connection which requires reliable and stable link under critical environmental condition of general industrial application
