Specifications

CPU Support

• 2nd generation Intel® Core™ Processor Family

Chipset

• Intel® QM67
• Intel® Integrated Graphics

Main Memory

• 2 x 240-pin DIMM sockets, Supports DDR3 1333/1066MHz non-ECC, un-buffered memory up to 16GB (Single socket max. 8GB)

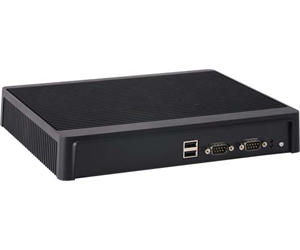

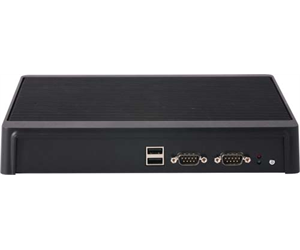

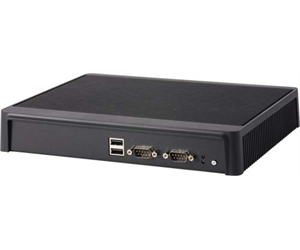

I/O Interface-Front

• 2 x USB 2.0
• 2 x RS232
• 1 x on/off power switch
• 2 x LED for PW and HDD

I/O Interface-Rear

• 1 x +12V DC-in
• 1 x VGA
• 1 x DVI
• 1 x HDMI
• 2 x USB 2.0
• 2 x RJ45 with LED for 10/100/1000 Mbps Ethernet
• 1 x SPDIF
• 1 x Line-out/ 1 x Line-in
• 2 x Antenna hole for Wi-Fi and TV tuner

Storage

• 1 x 2.5" SATA HDD Bay

Expansion

• 1 x Mini-PCIe for optional wireless LAN module
• 1 x Mini-PCIe for optional TV tuner module

Dimensions

• 250mm (W) x 194mm (D) x 40mm (H) (9.8" x 7.6" x 1.6") w/o mounting bracket

Construction

• Top cover made by aluminum for main heat exchange
• Chassis made by steel in black

Power Supply

• 1 x External 80W AC/DC power adaptor
• Input: 100~240VAC
• Output: +12V DC

Environment

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 80°C
• Humidity: 10 to 90% (Non-condensing)

Certification

• CE approval
• FCC Class A

OS Support

• Windows 7 / XP / WES7 / WES2009 / Linux
