Product Description

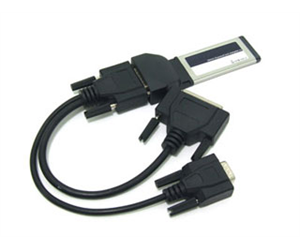

2 port High Speed Serial RS-232 + 1 port Parallel ExpressCard

Minimum Order Quantity : Under 1000
Are samples available for this product? : Yes
Delivery Date : 3Day(s)
Current Export Markets : Worldwide, Europe, North America, Mid East/Western Asia, Central/South America, Asia, Australia/Oceania, Taiwan, China, India, Southeast Asia, Africa

Language : English

Application

Automated Teller Machine(ATM)
Point of Sale(POS)
Automated Retail Kiosks
Embedded System
Payment System
Traffic System
Factory Automation and Process Control
Building Automation
Healthcare System
Remote Access Servers
Storage Network Management

Features and Benefit

Expands 2 RS-232 com ports and 1 port Parallel for your system
High Speed Baud Rate up to 921.6Kbps
Design to meet PCI Express 2.0 Gen 1 compliant
Built-in 15KV ESD protection
Supports Industrial Specification
256 byte FIFOs integrated UART
Supports 5V/12V/RI Selectable
Parallel – Compatibility mode, Nibble mode, Byte mode, EPP mode, and ECP mode)
16byte : SPP/ECP mode
I/O Address remap – RS-232 for 3F8, 2F8, 3E8, AND 2E8. Parallel – 378 and 278
Supports Microsoft Windows, Linux
