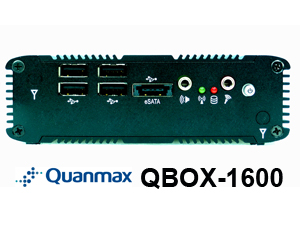

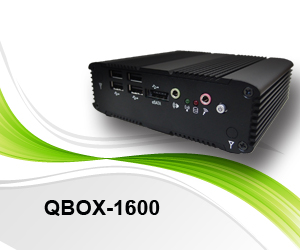

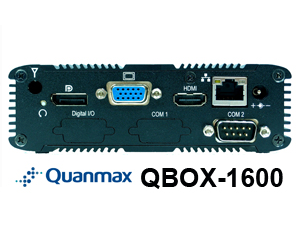

QBOX-1600

Fanless Box PC with Intel® Cedarview-M Atom™ N2600 processor


The QBOX-1600 is a fanless Box PC is ideal for space critical applications. This embedded hardware platform is designed with Intel® Cedarview-M Atom™ N2600 Processor which provides with excellent performance. The system is supported with Intel® NM10 Express Chipset, and DDR3 SO-DIMM up to 2GB.Featured are an eSATA, 1x2.5 SATA HDD, 1x mini-PCIe slot, GbE, USB 2.0, VGA, HDMI, DP, 2x COM and Digital I/Os.

The QBOX-1600 provides high reliability rugged case not only for great protection from EMI, cold and heat, but also integrated with passive cooling design for quiet fan-less operation such as Transportation, Surveillance and Automation.


Features

• Fan-less Design and 0.6-Liter Compact Sized
• Intel® Cedarview-M Atom ™ N2600 Processor
• Intel® NM10 Express Chipset
• Support DDR3 800 MHz SODIMM up to 2GB
• Support 1xVGA, 1xHDMI, 1xDP, 1xGbE, 1xeSATA, 4xUSB and Audio
• Support 2x COMs and Digital I/Os (optional)
• Support 1x 2.5” SATA HDD

For more information, please visit us at www.Quanmax.com
