Introduction

DC/DC PSU series is one of Zippy Switching power supply products lines , there are over 120 DC/DC solutions models in Zippy by different form factors open frame , PS2 , 1U single , 2U single , 1U redundant , 2U redundant , N+1 redundant ( wattage from 60W ~ 2000 + ) ; DC input solutions up to 110VDC ~ 220 VDC ; Zippy DC/DC PSU series is best solution for telecommunication , networking , storage system , server , transportation , special system applications .

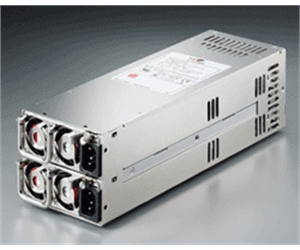

DM2W-6460F is one among of DC /DC 120+ solutions series in Zippy , Zippy design-in 3.3V / 5V remote sensing to match output characteristics for total power of +5V & +3.3V not exceed 40A  ; to meet some telecommunication demand for smooth operation , design in for hold up time 1.6ms minimum at full load & -48VDC input voltage and power good signal on delay 100ms to 500 ms , off delay 1ms .   one of best benefit for system integrators or value added retailors they prefer to use Zippy power supply is easy installation and easy maintenance -- hot swappable / hot pluggable redundancy function .

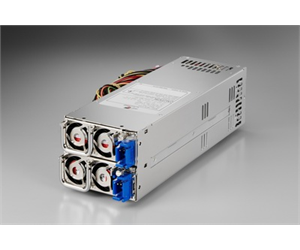

Another very best advantage for S.I. , V.A.R. they prefer to use Zippy PSU series is DC/DC to AC/DC convertible at the same model , if you use DM2W-6460F for your customer's DC /DC systems , you wish to apply the same system for AC/DC application by another projects ( customers ) then you can have M2W-6460P . vice versa .
