Form Factor

Mini-ITX Case

Model

GA6502 iSL SILVER W/BLACK
GA6502 iRD RED W/BLACK
GA6502 iYL YELLOW W/BLACK

Form Factor

Mini-ITX Case

M/B Type

170 x 170 mm (Intel DH61AG)

Dimension (mm)

290(W)x320(D)x50(H)=4.56L , with front panel

Driver Bays

Flexible Combination as state form below

Front

Power SW , Power/HDD LED

Power Supply

180W 19V AC Adapter

PCI Slot

N/A

System Fans

40 x 40 x 10 mm Single Fan x 1 (Rear Side) or
40 x 40 x 10 Single Fan x 1 (Left Side) or
40 x 40 x 10 Single Fan x 2 (Rear & Left)

Additional Port

Wifi Antenna x 2

Packing

1pc/3.30kgs/4.00kgs/0.80’

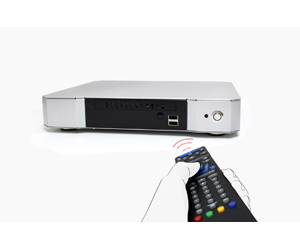

Options

IR Sensor & Remote control

Application

HTPC、Media Center

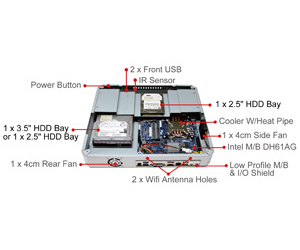

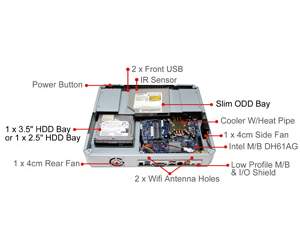

Storage Choices

Slim ODD

3.5" HDD

2.5" HDD

Wifi

PCI

Remarks

1

1

1

2

2

1

1

2

3

1

1

2

4

2

2
