Form Factor

Mini-ITX Case

Chassis Dimensions

310(D) x 315(W) x 70(H)mm = 6.83L , with front panel

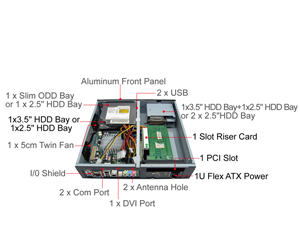

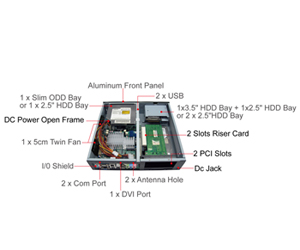

Drive Bays

Flexible Combination as state form below

Front

USB(V2.0) x 2 , Power/Reset SW , Power/HDD LED

Power supply

DC Open Frame 90W+AC Adapter 80W

DC Open Frame 120W+AC Adapter 120W

DC Open Frame 180W+AC Adapter 180W

FlexATX 180W

(CUL/TUV/ PSE/CB/CE/FCC, ErP, Active PFC)

PCI Slot

Standard PCI or PCI-E

System Fan

50 x 50 x 10mm Twin Fan x 1 (Right Side)

Additional Port

Serial Port x 2

Wifi Antenna x2

DVI x 1

Packing

1pc/3.20kgs/4.00kgs/1.0'
2pcs/6.80kgs/7.30kgs/2.51'

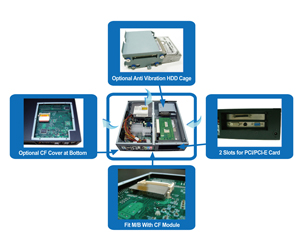

Option

Wall Mount (GA600 Wall Mount)

Anti-vibration HDD Cage

Application

Security、i3,i5,i7 System

Slim ODD

3.5" HDD

2.5" HDD

Wifi Hole

PCI

COM

PSU

DVI

CF in Bottom

Remarks

1.

1

1

2

2

1

2

1U FlexATX

1

Y

1x 2.5" HDD optional choice

2.

1

2

2

DC PSU

1

Y

1×3.5" hot swap enclosure for 2×2.5" HDD

3.

4

2

1

2

1U FlexATX

1

Y

1x 2.5" HDD optional choice

4.

2

2

2

1

2

1U FlexATX

1

Y

Special cage for 3.5" HDD

5.

1

3

2

1

2

1U FlexATX

1

Y

1. Card length must be less 160 or 170 mm
2. 1×2.5" HDD optional choice

6.

1

2

2

2

2

DC PSU

1

Y

7.

1

3

2

2

2

DC PSU

1

Y

1x 2.5" HDD optional choice

8.

1

1

2

2

1

2

DC PSU
(180W)

1

Y

1x 2.5" HDD optional choice

9.

2

1

2

2

DC PSU
(180W)

1

Y

Special cage for 3.5" HDD

10.

2

2

2

1

2

DC PSU
(180W)

1

Y

Special cage for 3.5" HDD

11.

1

1

1

2

1

2

DC PSU
(120W up)

1

Y

1x 2.5" HDD optional choice

12.

4

2

2

2

DC PSU
(180W)

1

Y

1x 2.5" HDD optional choice

13.

1

2

2

2

DC PSU
(180W)

1

Y

Special cage for 3.5" HDD

Slim ODD

3.5" HDD

2.5" HDD

Wifi Hole

PCI

COM

PSU

DVI

CF in Bottom

Remarks
