CPU

Intel® Atom Processor N450

Chipset

Intel® NM10

Memory

1x SO-DIMM DDR2 667/800 up to 2GB

Internal Storage

1x 2.5” Hard Drive or SSD

Camera

1.3M + MIC

Cooling

Fanless

Material

Aluminum front bezel & Metal Enclosure

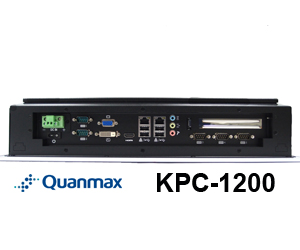

I/Os

1x S/PDIF

1x Push Button for Power On/Off

1x Power LED (Green)

3x USB 2.0 Connectors

1x DC Jack for Power Input

1x D-Sub 15P for VGA Ouput

1x RJ-45, GbE Port

1x COM Port

Audio

1x Phone Jack for Line-Out

1x Phone Jack for MIC-In

1x Phone Jack for Line-In

Built-In 2 x Stereo Speakers

Expansion Slot

1x Mini PCI-Express for optional WiFi

1x SIM Card 2x3 pin header for 3.5G solution

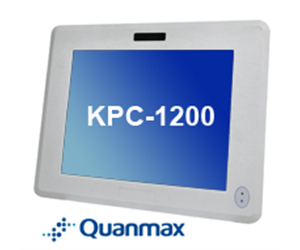

Display

12.1” TFT LCD XGA

Brightness

500 cd/m²

Resolution

1024 x 768

Touch Screen

5-wire Resistive Type

Wireless LAN

Optional WLAN mPCIe or 3.5G mPCIe module

Temperature

Operating: 0˚C to 40˚C, 0%-90% rel. hum.

Storage: -20˚C to 80˚C, 0%-90% rel. hum.

Dimensions

343 x 269 x 29 mm (W x H x D)

Weight

2.5 kg

Power Input

DC 12V

Mounting Type

VESA Mount

Compliant

CE, FCC Class A, IP65 front bezel
