A1008I Specifications

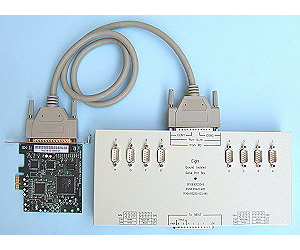

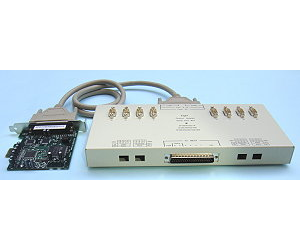

• System structure:

  • A320 intelligent multi-port card.

  • IF108 connector box.

  • A640 cable.

• System resource and IRQ map:

  • Memory map model:

  • 128Byte for PCI controller.

  • two 4Kbyte for UART controller.

• I/O map model:

• 128Byte I/O for PCI controller.

• 256byte I/O for UART controller.

• 4byte I/O for status register.

• one free IRQ assigned by PCI BIOS.

• Hardware compatibility:

  • PCIe bus slot.

• Software compatibility:

  • WIN 95/98/Me. (I/O map model only).

  • Windows NT system.

  • Windows 2000/XP/Vista system.

  • Windows 7 system.

  • SCO Openserver

  • Linux system.

• Port capability：

  • A320 card with one IF108 box can support 8 RS232 serial ports.

• BOX specification.

• Interface：

  • IF108 box: Ground Isolated RS232C.  8 ports per box.

• Baud Rate：

  • each port can be configured to 110 - 115200bps.

      Note: In UNIX system we use 50bps, 75bps, 150bps to set the target speed 57600bps, 76800bps and 115200bps.

• Flow Control：

  • XON/XOFF software handshake.

  • RTS/CTS hardware handshake.

• Connector type：

  • IF108 box: DB9 male connector.

• Dimension：

  • card: 10.0 * 9.5 cm.

• Environment：

  • operating temperature: 5℃ to 40℃.

  • operating humidity: 10% to 90% RH.

  • storage temperature: 0℃ to 65℃.

  • storage humidity: 5% to 90% RH.

• Other relative products.

  • user can use P640NU card in PCI slot and use same connector box.

  • P990F card: built-in 80960JF local processor.

  • IOP3927F card: built-in 133MHz MIPS local processor.
