| Sinew offers DBS Digital Broadcast Teaching System SB-1082A5S |
Introduction SB-1084A
DBS System, without the installation of any software or any driver, is a multi-functional, pure-hardware Broadcast Teaching System. With STP Cat5E cable networking, it can make signal transmission more distant, image quality more beautiful. Instant function keys make teacher to have a real-time classroom management: Broadcast, Demonstrate, Instruct, Dialogue, On-line Help Call, Pairing Talk, With a specific Grouping function, DBS can make every group different activities. DBS can bring more interactive and flexibility to computer class.
Features
- Teacher console support 2 teacher PC, or 1 PC 1 laptop. Integrating project becomes easier.
- Signal transmitted through STP CAT5 Cable, which is much easier to install than traditional coaxial cable.
- Quality of video and audio is highly improved. No buzz, no noise.
- Teacher can set several students to talk as a group, and others can listen to them, or to join the group at any time.
- Two students sharing one unit save the cost. No I/O, IRQ or memory is occupied.
- No driver disk or DIP Switch is needed for student number setup.
- High resolution screen transfer supports up to 1600 x 1200 SVGA and full motion video.
- 3 LED for each student to show the status of power on/ off, signal receiving, help, leader student, port/ area, and dialog mode.
- Independent LAN networking, no delay to the internet speed or cause campus internet disaster.
- Detecting student PC on-line status; DBS system can even work with power-off PC.

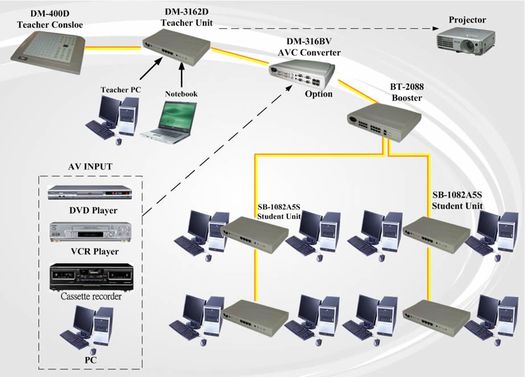

System Structure
Functions
| Broadcast |
The teacher can broadcast either teacher or student's audio, video and microphone to all or selected students. |
| Observe |
The teacher can monitor student's PC rotationally or respectively. |
| Darken |
The teacher can darken all or selected screens of students' PC. |
| Center Monitor |
Teacher can broadcast his/her screen on the center monitor in order to comply with teaching method. |
| Dialog |
With headsets and among any function executed, all/the selected students can dialog with each other. |
| Talk II |
Student on the same student unit can talk to each other |
| Help |
If the students need aid, they can push the help button for teacher's help. |
| Group |
The teacher can group all students by booster port. Teacher can join any group at any time. |
| Audio/ Video/ Mic |
Either of the broadcast source audio/ video/ microphone can be disabled. |
Component
DM-400D
Teacher Panel |
BT-2088
Booster |
SB-1082A5S
Student Unit |
DM-316BV (Optional)
AVC Converter |
DM-3162DA5S
Teacher Console |
|
| Item |
Model No. |
Description |
| Teacher Panel |
DM-400D |
Panel with Multi-function keys on the panel |
| Teacher Console |
DM-3162DA5S |
Teacher Unit can connect Teacher PC & Notebook or Projector. |
| Booster |
BT-2088 |
Signal Booster with 8 ports; one port for 5 Student Units |
| Student Unit |
SB-1082A5S |
Bus In/ Out for cabling, monitor and VGA interface ports for student's PC. |
| AVC Converter |
DM-316BV |
4 AV and 2 VGA Signal Input, given DBS a powerful A/V Input option. (Optional Device) |
| KB/M Control Kit |
KBM |
Software Kit for Remote Control, Keyboard and Mouse control (Optional Device) |
| Bus Cable |
STP CAT5E |
Shielded Twist Pair Category 5E Cable | |
